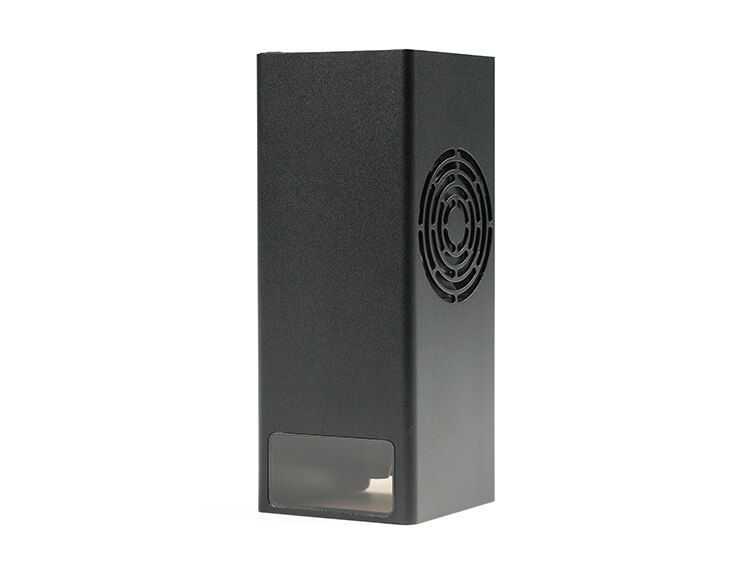

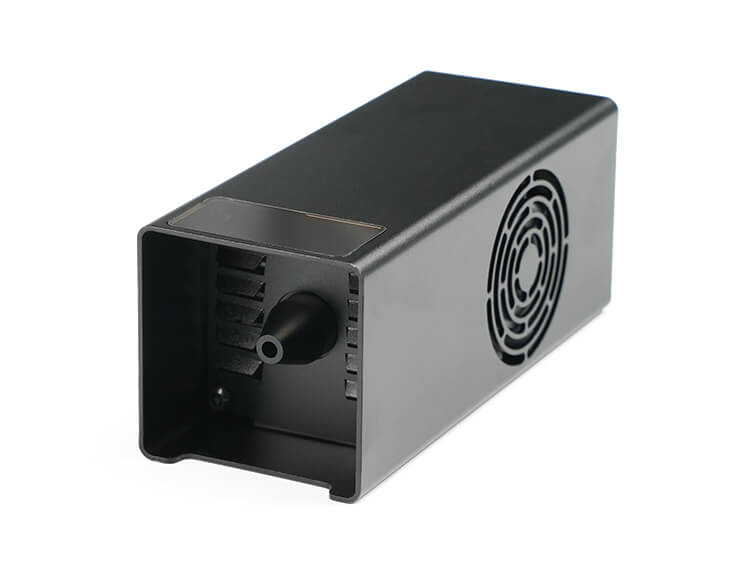

YD10F-YCP01.000031A
- Product Model: YD10F-YCP01.000031A
- Output power: 20W
- Input voltage: 24V
- spot size: u22640.12*0.08mm
- Application: Laser cutting, Laser engraving
Product details
Description
YD10F-YCP01.000031A is a 20W high-precision blue light semiconductor laser with focal spot size of less than0.12mm*0.08mm The laser uses PWM to modulate the laser power The laser is light and compact, with dimensions of 50mm*50mm*110mm and weight of 424+5g
Parameters
| Optical parameters – Output poweruff1a: Typical: 20w | Optical parameters – Output poweruff1a: Minimum:440nm,Typical:447nm,Maximum: 455nm |
| Optical parameters – Working distanceuff1a: Minimum:3mm Typical:4mm,Maximum:5mm | Optical parameters – Focus spotuff1a: Maximum: 0.12*0.08mm |
| Electrical performance – Photoelectricconversion efficiencyuff1a: Typical:33% | Electrical performance – Working currentuff1a: Typical: 3.5A |
| Electrical performance – Working voltageuff1a: Typical: 24V | Thermalperformance – working temperatureuff1a: Minimum:0℃,Maximum: 50℃ |
| Thermalperformance – Storage temperatureuff1a: Minimum:-40℃,Maximum: 85℃ |
Other Information
- The laser light emitted by the laser module is likely to injure persons’eye, so do not directly gaze its end surface and wear appropriate safety glasses to prevent laser light when it is working.
- Keep the device working or storing in a dry environment. The anti-dust grade is over one million, in order to prevent dust inside the lens to affect the laser dot shape.
- Working at high temperatures will increase the threshold current, reduce conversion efficiency and speed up the aging of the device.
- When output power is higher than it’s specific parameter of operation, it will accelerate the aging of the device.
- This laser module is an electrostatic sensitive device. Please make sure ground yourself or wear an antistatic wrist strap before you take it.
