YD60F-YCP01.000036A
- Product Model: YD60F-YCP01.000036A
- Output power: 20W
- Input voltage: 24V
- spot size: ≤6*8mm
- Application: Laser cutting, Laser engraving
Product details
Description

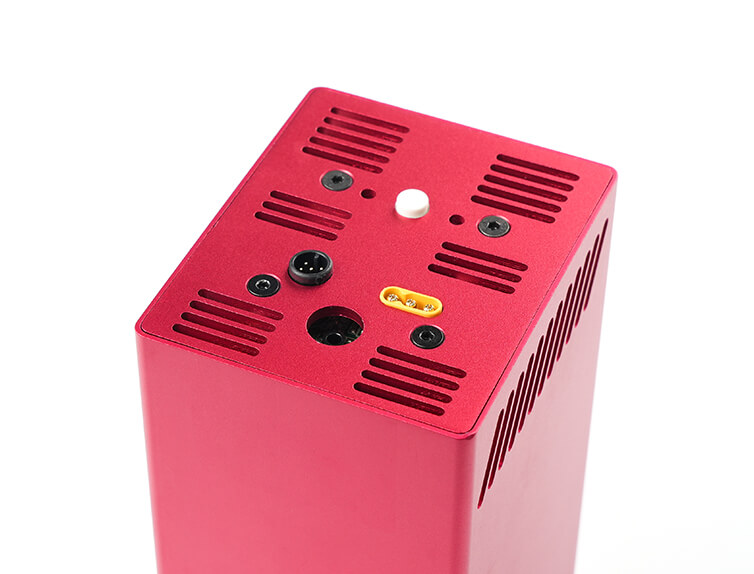

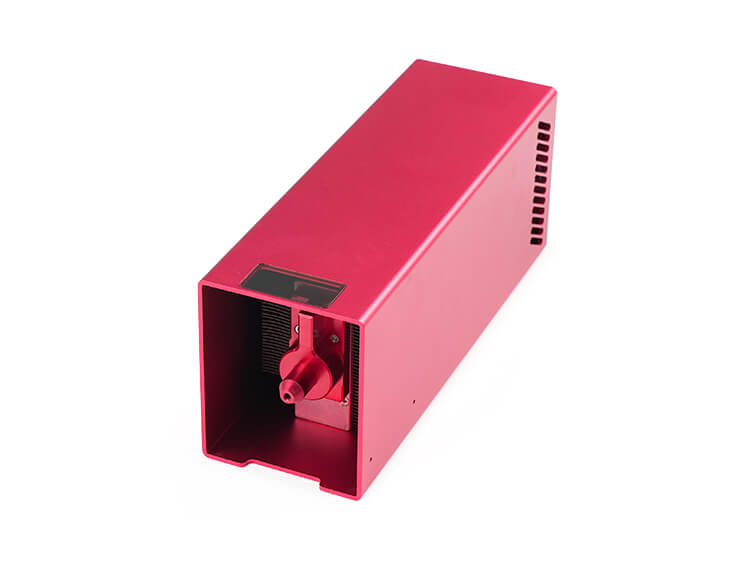

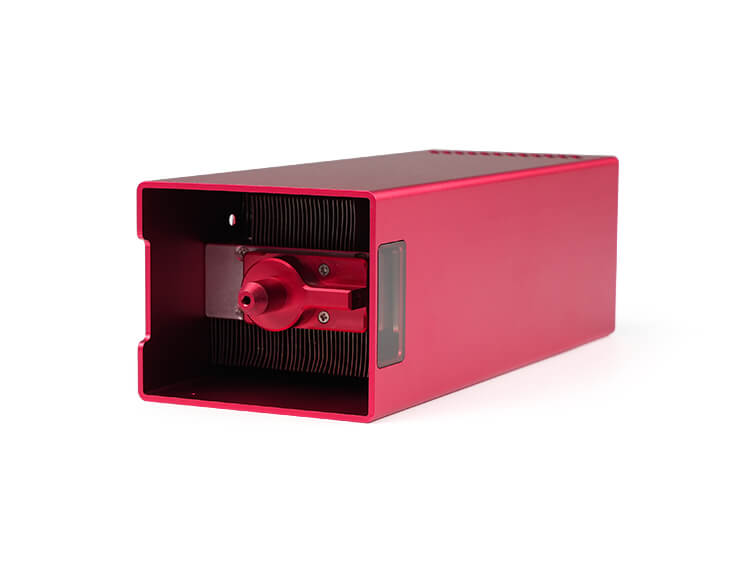

YD60F-YCP01.000036A is a 20W high-precision blue solid laser with focal spot size of less than0.1mm*0.08mm The laser uses PWM to modulate the laser power The laser is light and compact, with dimensions of 45mm*48mm*133mm and weight of 230+5g
Parameters
| Optical parameters-Qutput power: Typical:20W | Optical parameters-Central wavelength: Minmum:440nm,Typical:447nm,Maxim um:455nm |
| Optical parameters-Working distance: xxx | Optical parameters-Focus spot: Typical:6*8mm |
| Electrical performance-Photoelectricconversionefficiency: Typical:33% | Electrical performance-Working current: 3.2A |
| Electrical performance-Working voltage: 24V | Thermalperformance-working temperature: Minmum:0℃,Maxim um:50℃ |
| Thermalperformance-Storage temperature: Minmum:-40℃,Maxim um:85℃ |
