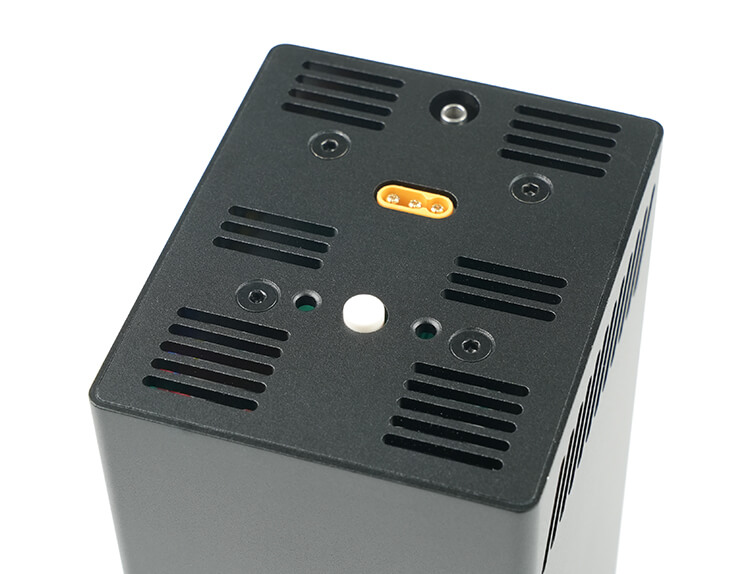

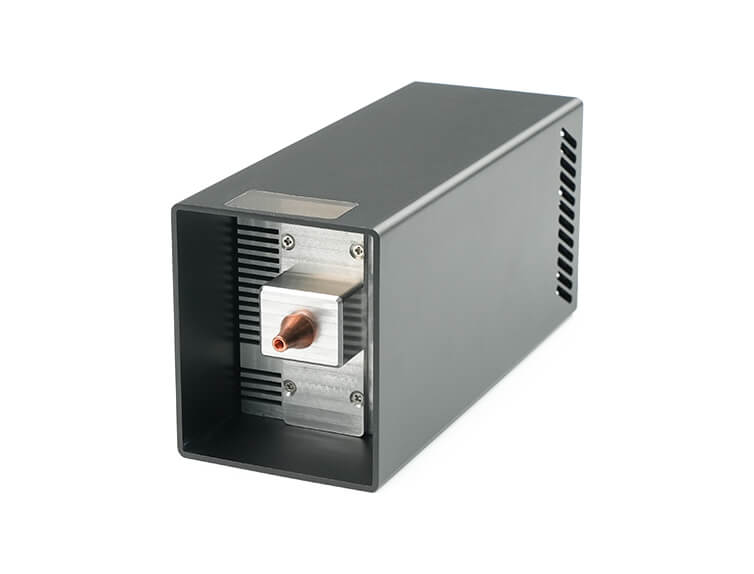

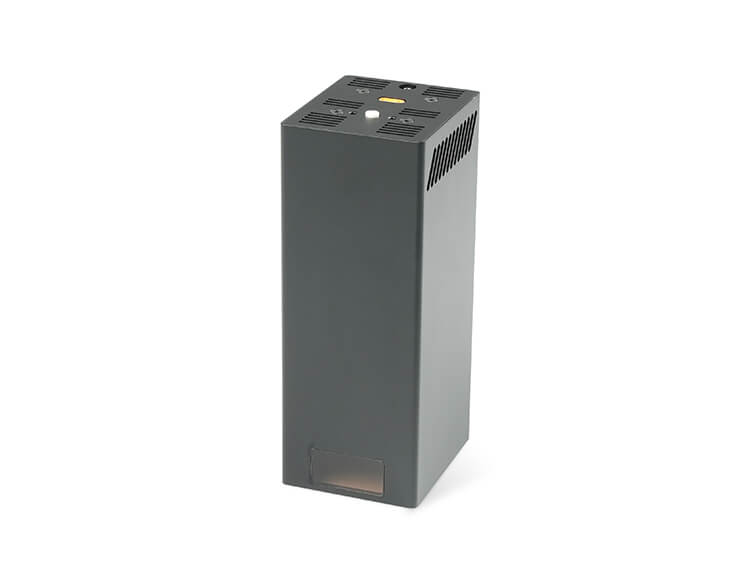

YD60F-YCP01.000043A
- Product Model: YD60F-YCP01.000043A
- Output power: 20W
- Input voltage: 24V
- spot size: ≤6*8mm
- Application: Laser cutting, Laser engraving
Product details
YD60F-YCP01.000043A is a 20W high-precision blue solid laser with focal spot size of less than0.1mm*0.08mm The laser uses PWM to modulate the laser power The laser is light and compact, with dimensions of 45mm*48mm*133mm and weight of 230+5g
| Optical parameters-Qutput power: Typical:20W | Optical parameters-Central wavelength: Minmum:440nm,Typical:447nm,Maxim um:455nm |
| Optical parameters-Working distance: xxx | Optical parameters-Focus spot: Typical:6*8mm |
| Electrical performance-Photoelectricconversionefficiency: Typical:33% | Electrical performance-Working current: 3.2A |
| Electrical performance-Working voltage: 24V | Thermalperformance-working temperature: Minmum:0℃,Maxim um:50℃ |
| Thermalperformance-Storage temperature: Minmum:-40℃,Maxim um:85℃ |
1.The laser light emitted by the laser module is likely to injure persons’eye, so do not directly gaze its end surface and wear appropriate safety glasses to prevent laser light when it is working. 2.Keep the device working or storing in a dry environment. The anti-dust grade is over one million, in order to prevent dust inside the lens to affect the laser dot shape. 3.Working at high temperatures will increase the threshold current, reduce conversion efficiency and speed up the aging of the device. 4.When output power is higher than it’s specific parameter of operation, it will accelerate the aging of the device. 5.This laser module is an electrostatic sensitive device. Please make sure ground yourself or wear an antistatic wrist strap before you take it.
